KEYLESS UNIT OUTLINE
BHE091467520T01
• Controls the following systems:
-
– Power door lock system
-
– Keyless entry system
-
– Interior light control system
-
– Immobilizer system
-
– Theft-deterrent system
• Supplies power to the front seat belt lock release system.
• An on-board diagnostic system, which can determine if the input/output signals in the keyless entry system are normal, has been adopted. The on-board diagnostic system is initiated by the key reminder switch, ignition switch and driver-side door switch, and the following operations can be verified. Refer to the Mazda RX-8 Workshop Manual (1796-1*-03D) for detailed procedures and descriptions regarding the operations.
-
– Lock/unlock operation of door lock actuator for all doors
-
– Trunk lid opener unlock operation
-
– Hazard light flashing
• When replacing the keyless unit for vehicles with the immobilizer system, initialization configuration according to the vehicle information and immobilizer system resetting are required. Refer to the Mazda RX-8 Workshop Manual for detailed procedures and descriptions regarding the operations.
|

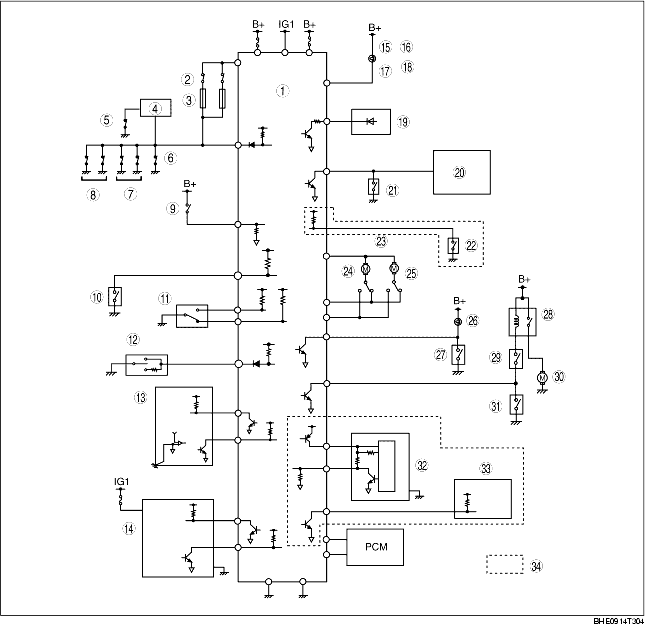

1
|
Keyless unit
|
|
2
|
Buckle switch
|
|
3
|
Lock release solenoid
|
|
4
|
Instrument cluster
|
|
5
|
Door switch (driver's side)
|
|
6
|
Door switch (passenger's side)
|
|
7
|
Rear door lower latch switch
|
|
8
|
Rear door upper latch switch
|
|
9
|
Key reminder switch
|
|
10
|
Door lock-link switch (driver's side)
|
|
11
|
Door lock-link switch (passenger's side)
|
|
12
|
Door key cylinder
|
|
13
|
Keyless receiver
|
|
14
|
Coil
|
|
15
|
Map light
|
|
16
|
Interior light
|
|
17
|
Courtesy light
|
|
18
|
Ground illumination light
|
|
19
|
Instrument cluster (security light)
|
|
20
|
Flasher unit
|
|
21
|
Hazard warning switch
|
|
22
|
Bonnet latch switch
|
|
23
|
Front door lock actuator
|
|
24
|
Driver's side
|
|
25
|
Passenger's side
|
|
26
|
Trunk compartment light
|
|
27
|
Trunk compartment light switch
|
|
28
|
Trunk lid opener relay
|
|
29
|
Trunk lid opener cancel switch
|
|
30
|
Trunk lid opener
|
|
31
|
Trunk lid opener switch
|
|
32
|
Intruder sensor
|
|
33
|
Theft-deterrent siren
|
|
34
|
Vehicles with theft-deterrent system
|
