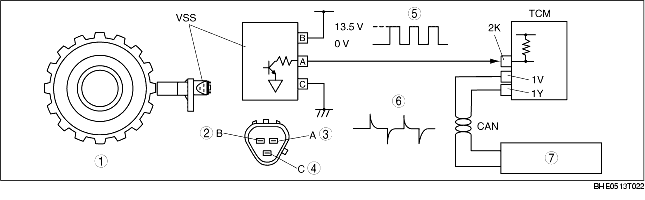

• The VSS is a Hall element type. A 16-pulse signal is generated per rotation of the parking gear and the VSS sends this signal to the TCM.
• The TCM performs EC-AT control based on the VSS and throttle position sensor signals.
• The TCM also relays signals to the instrument cluster.
|
1
|
Parking gear
|
|
2
|
Power supply
|
|
3
|
Output
|
|
4
|
Ground
|
|
5
|
Input wave form
|
|
6
|
Output wave form
|
|
7
|
Instrument cluster
|
